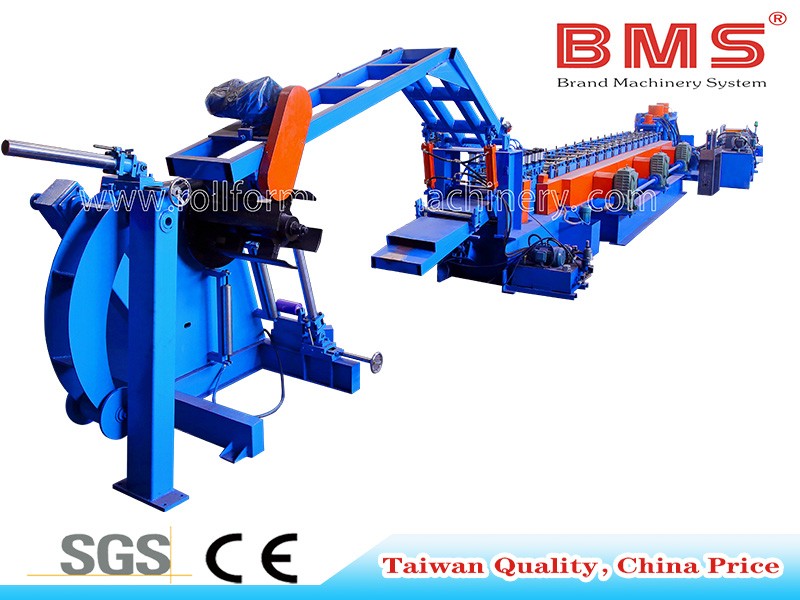

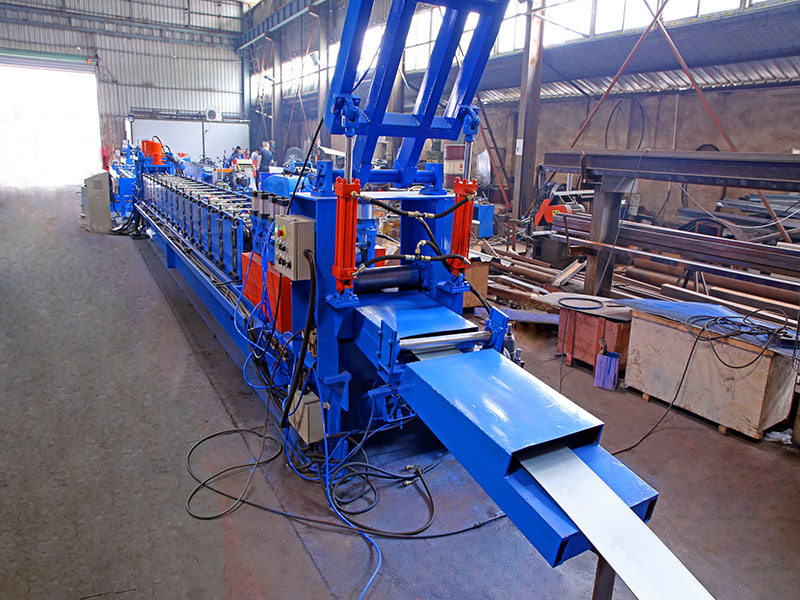

Highway W Beam Roll Forming Machine

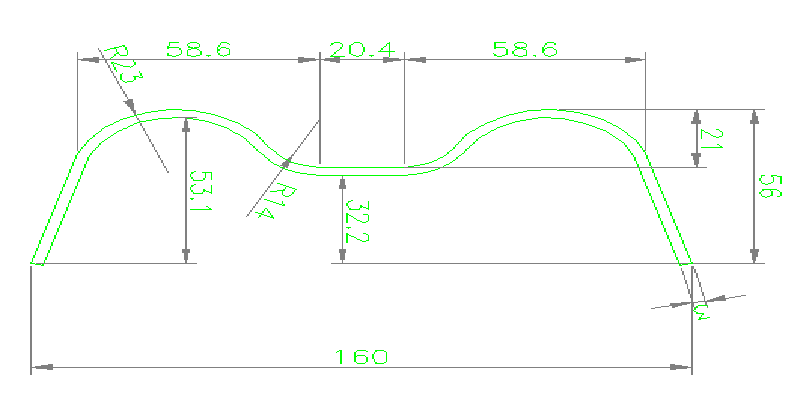

Profile

Material

Material Thickness(t):3.0-4.5mm
Applicable material:Galvanized Steel(GI),Cold roll steel(CRC)

With yield strength Q235-550Mpa

Work Follow

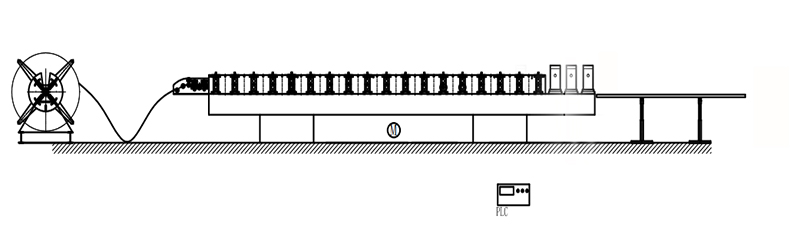

Decoiler→Feeding and Leveling Device→Rolling Forming System→Hydraulic Post Punching & Cutting→Exit Rack

Machine Components

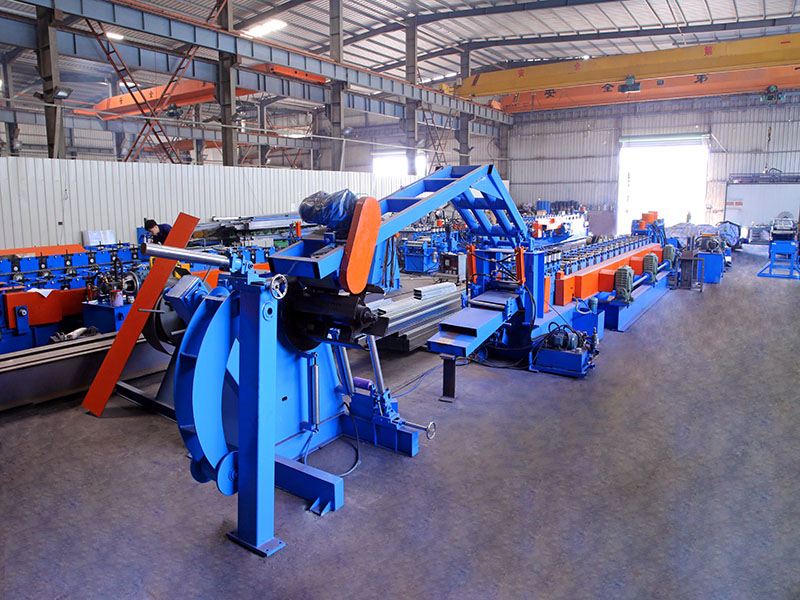

1) 5 Ton Hydraulic Decoiler: one set

Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, motor:3KW, frequency speed control
Oil pump motor:3KW,With Press Arm
Add automatic feeding power and self-stop device

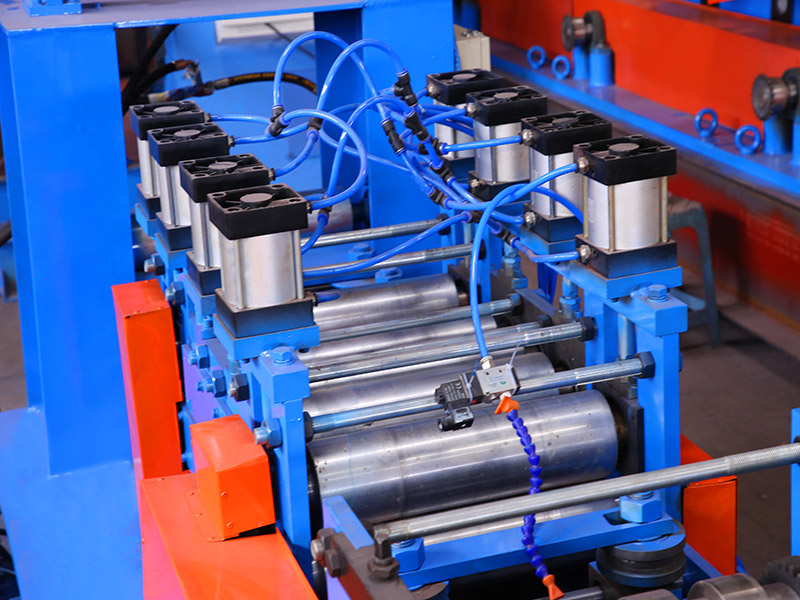

2) Feeding And Leveling Device

Up Three down Four totally seven shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Shafts manufactured from GCr15 Steel,Diameter=φ120mm,Tone plated with hard chrome Coated,precision machined

Use Eight Air Devices to AUTO change the distance of up and down shafts

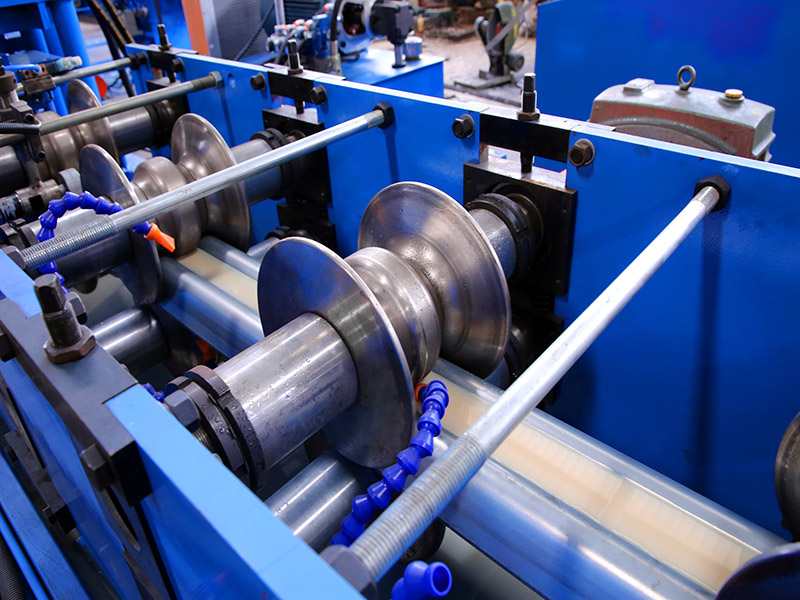

5) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Rollers manufactured from Cr12 Steel,CNC lathes,Heat Treatment,HRC58-62
Shafts Diameter=ф85,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor=18.5KW, Frequency speed control

With Water Cold Device For Good Product

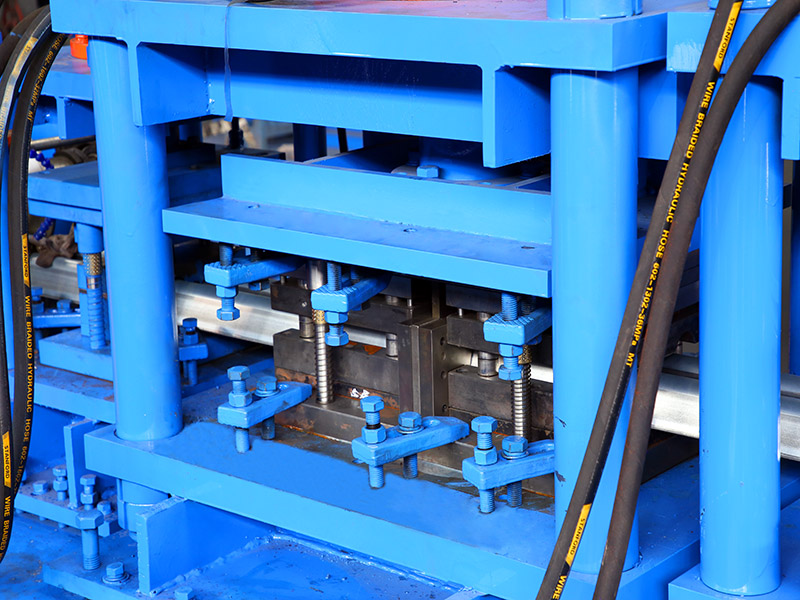

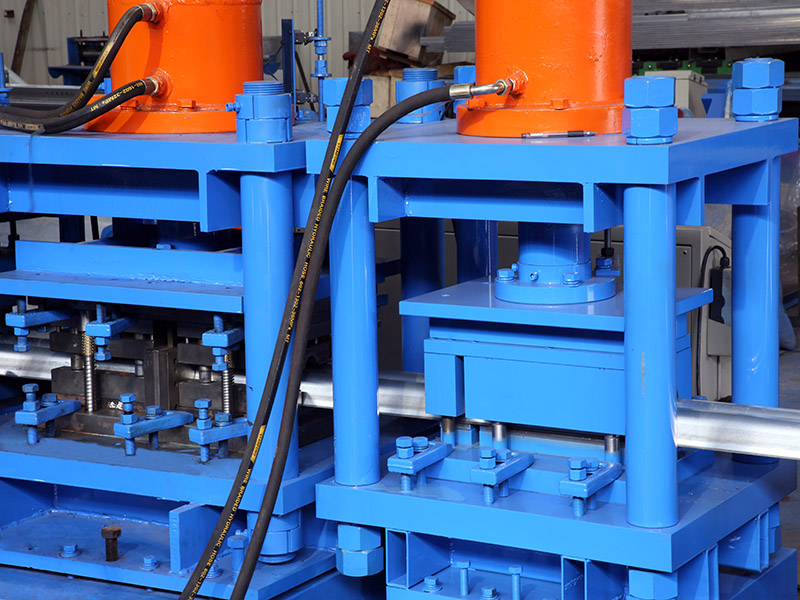

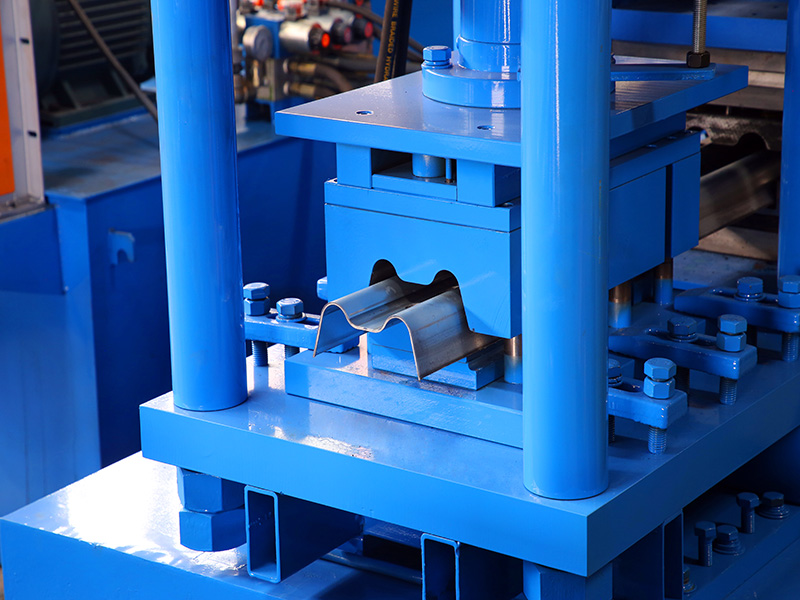

5) Post Hydraulic Punching & Cutting Device

Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:22KW,Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
2-cylinders hole punching system for punching
1-cylinders system for Cutting

6)PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc

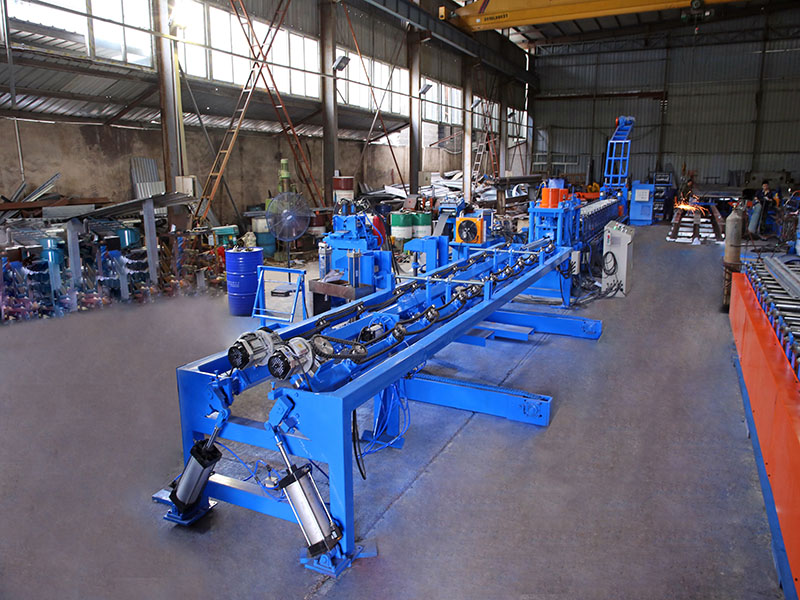

7)Exit Rack

With-powered, One unit,with rollers on it for easy movement.

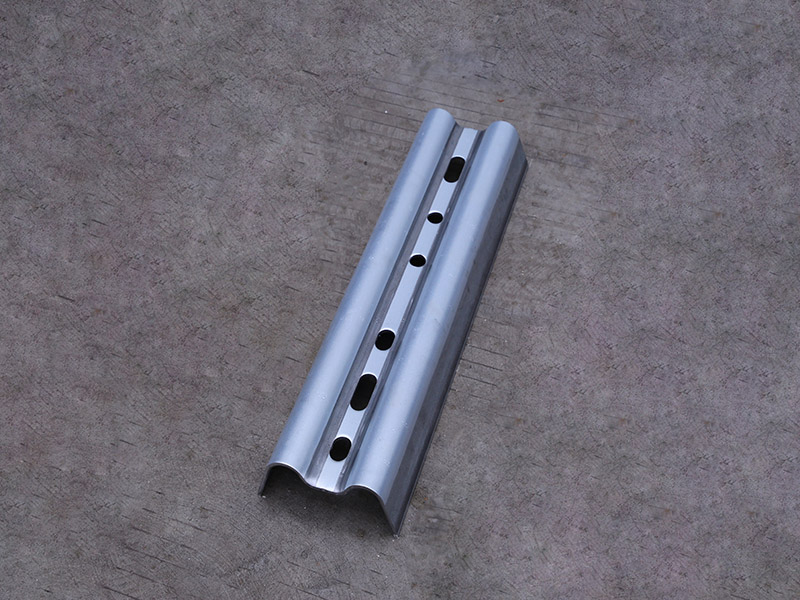

8)Product Show

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 60 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
