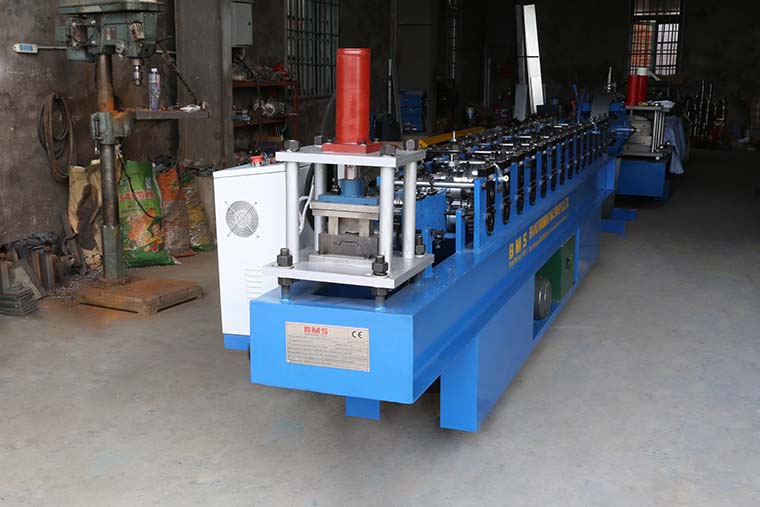

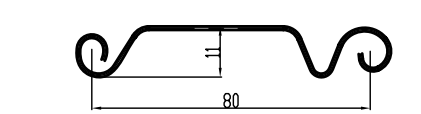

Roller Shutter Door Roll Forming Machine For SD11-80 Profile

           Roller Shutter Door Roll Forming Machine

Click here to see the video: roller shutter door machine

1.Main features of Roller Shutter Door Roll Forming Machine

    The advantages of Roller Shutter Door Roll Forming Machine are as follows:

    1.Beautiful Profile

    2.Save space,more convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable

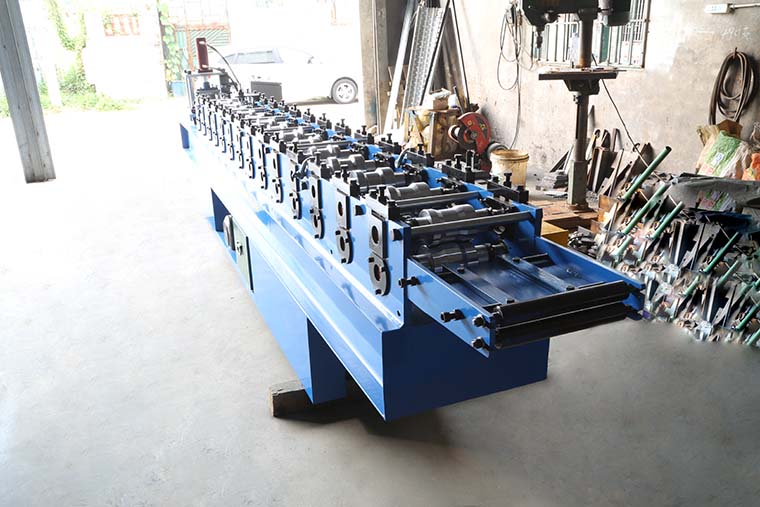

2.Detailed Images of Roller Shutter Door Roll Forming Machine

    Machine Parts

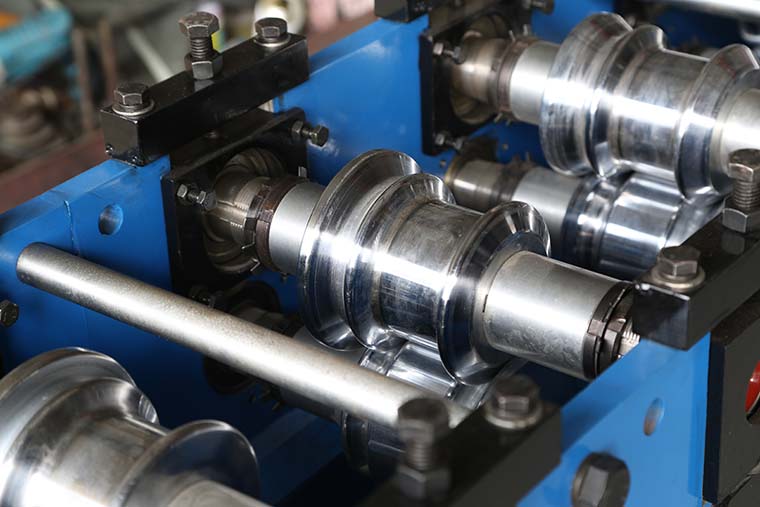

        1) Roller Shutter Door Roll Forming Machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        With black treatment or Hard-Chrome Coating for options.

        Body framemade from 300# H type steel by welding

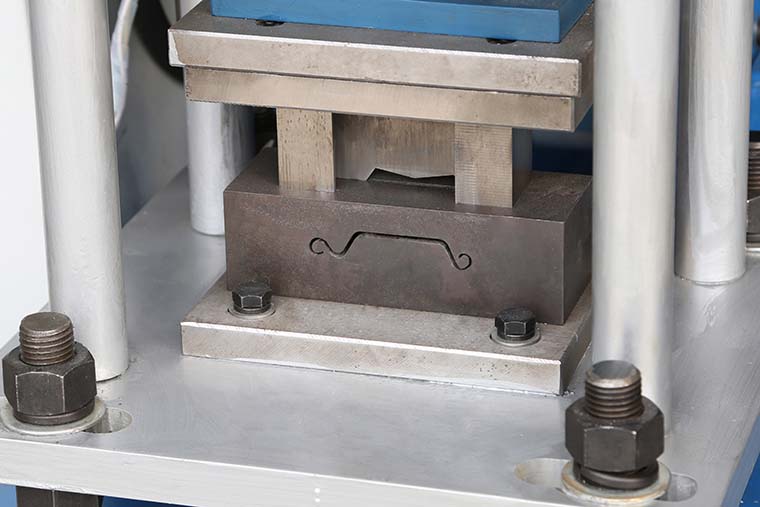

        2) Roller Shutter Door Roll Forming Machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding

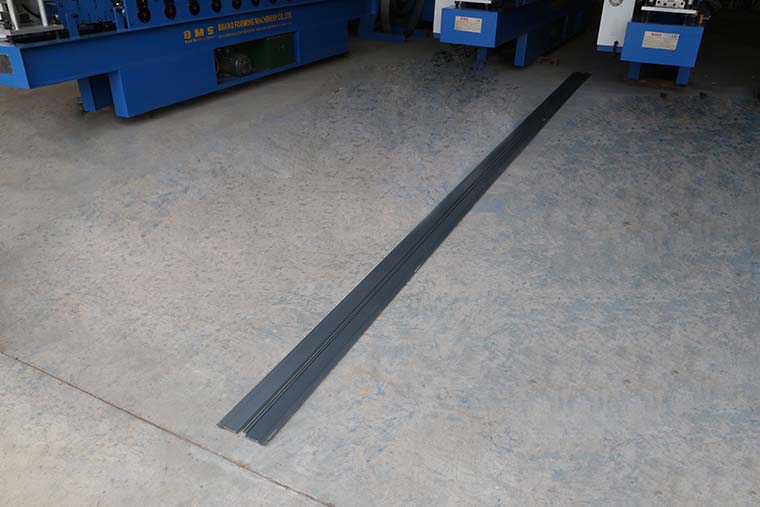

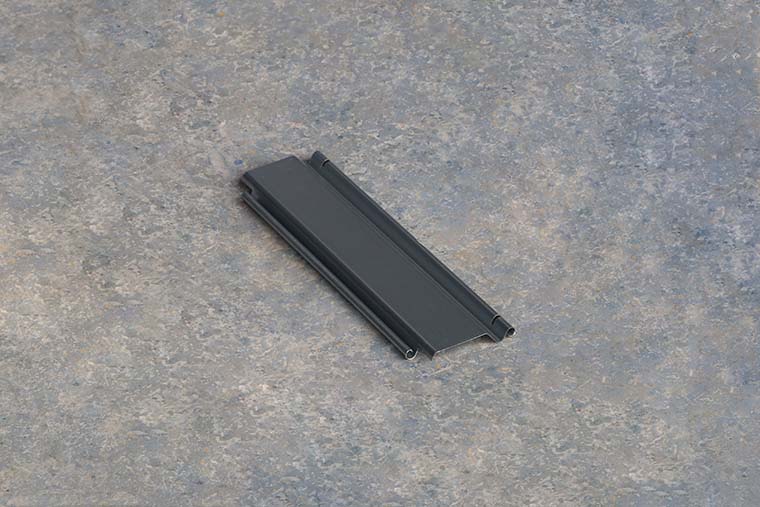

        3) Roller Shutter Door Roll Forming Machine Prodoct Show

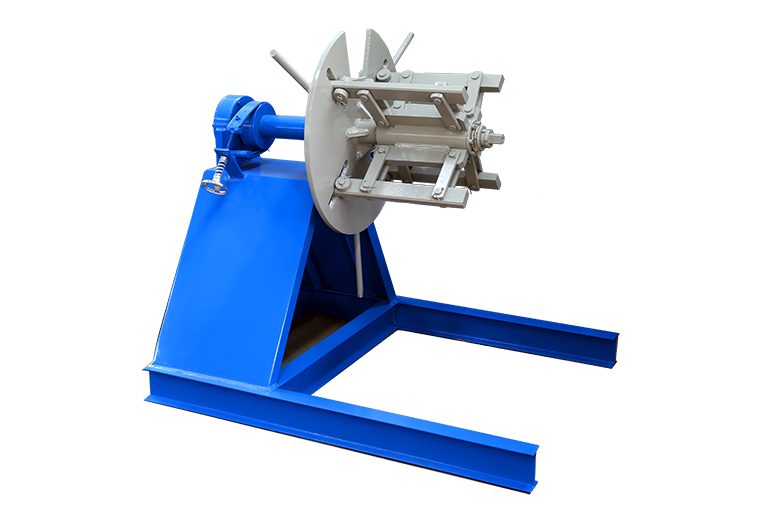

        4) Roller Shutter Door Roll Forming Machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 300 mm, coil ID range 470mm±30mm

        Capacity: Max. 3 Ton

        5)Roller Shutter Door Roll Forming Machine  run out table

        Un-powered,one unit

Other detailes of SD11-80 Rolling Shutter Door Machine

Shafts manufactured from 45#,Main shaft diameter=φ45/57mm,precision machined

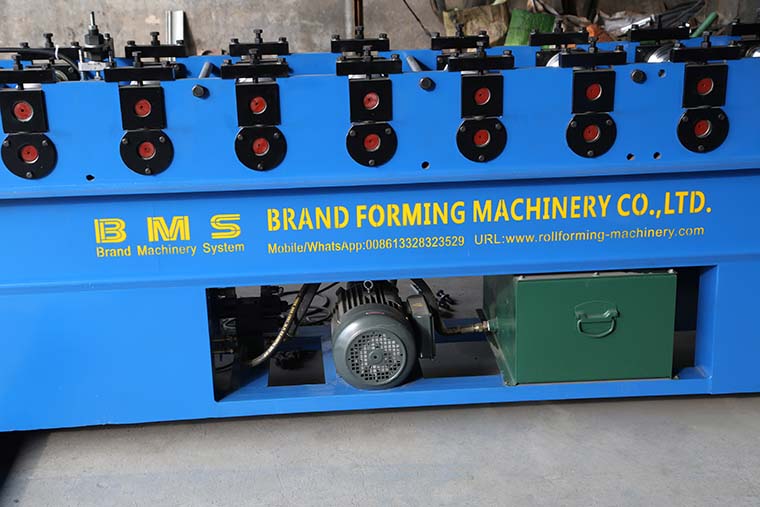

Motor driving,Gear chain transmission,14/19 steps to form

Main motor: 4KW/5.5KW ,Hydraulic motor :2.2KW/3.75 KW

Frequency speed control. Forming speed approx.12-15m/min

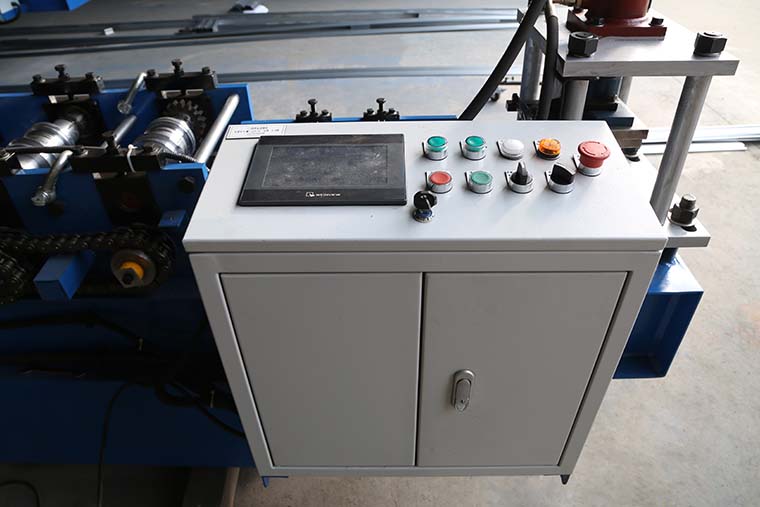

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English

Click here check other relative product : metal door frame roll forming machine

After-sale service of Roller Shutter Door Roll Forming Machine

1. The warranty of SD11-80 Rolling Shutter Door Machine

    is 12 months after the client receives the machine.

    Within one years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
