Pallet Rack Upright Roll Forming Machine-Warehouse Series

Profile

Click here for machine video

Material

Material Thickness: 2.0-3.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength G340-550Mpa

Work Follow

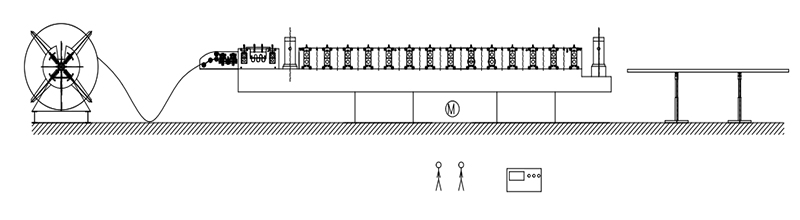

Decoiler→Guide Feeding & Leveling Device→Roll Forming System→Hydraulic Post Cutter →Exit Rack

Machine Components

1) 5 Ton Hydraulic Decoiler: one set

Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, motor:3KW, frequency speed control
Oil pump motor:3KW,With Press Arm
Add automatic feeding power and self-stop device

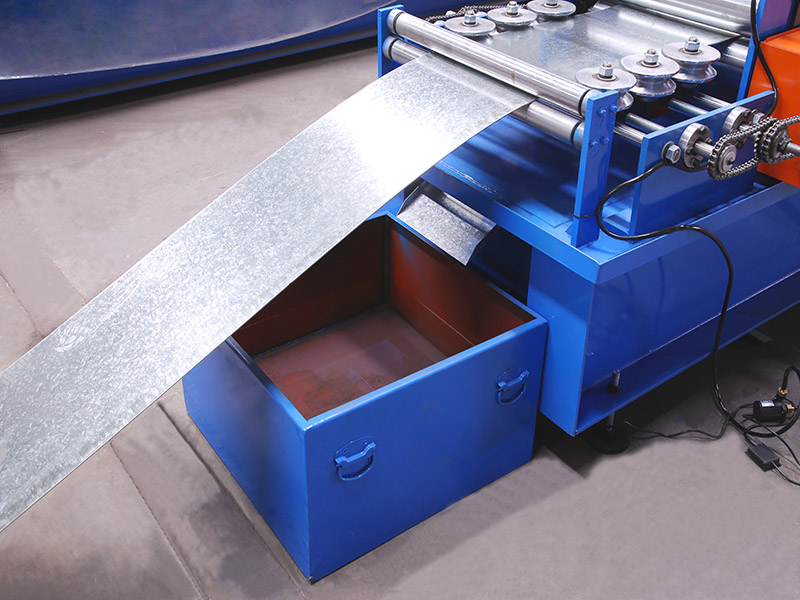

2) Feeding Guide & Leveling Device

Up three down four totally seven shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t20mm
Shafts manufactured from 45# steel,Diameter=φ90mm,Tone plated with hard chrome Coated,precision machined

3) Main Machine

Body frame made from H450 type steel by welding.
Rollers manufactured from Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated.
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shafts Diameter=ф95,precision machined.
Gear/Sprocket driving,about 30-step to form.
Main Motor=15KW*2, Frequency speed control.

With Arch Structure

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 7.5KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the independent engine hydraulic station.

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

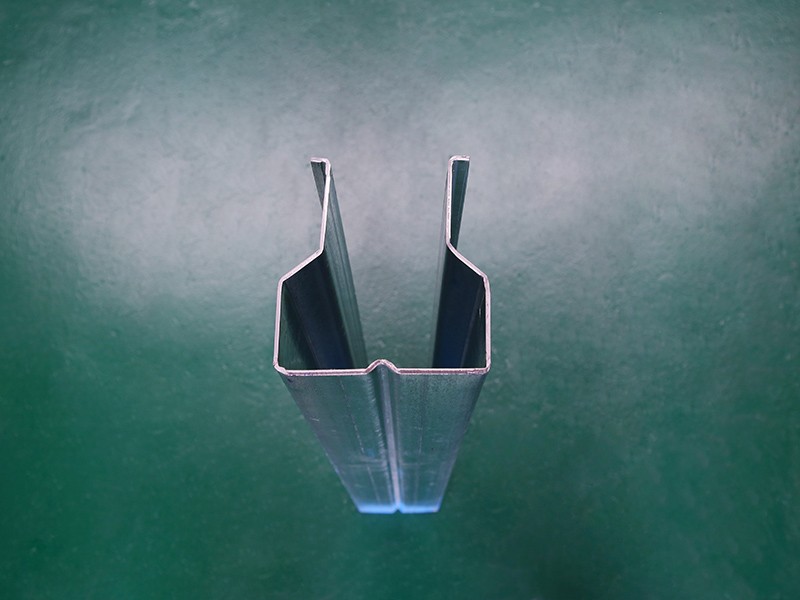

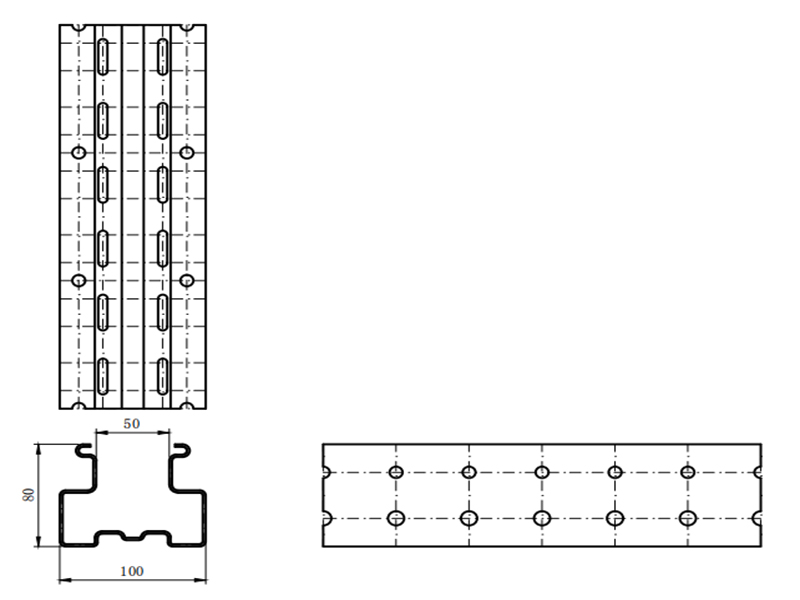

7)Product Show

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
