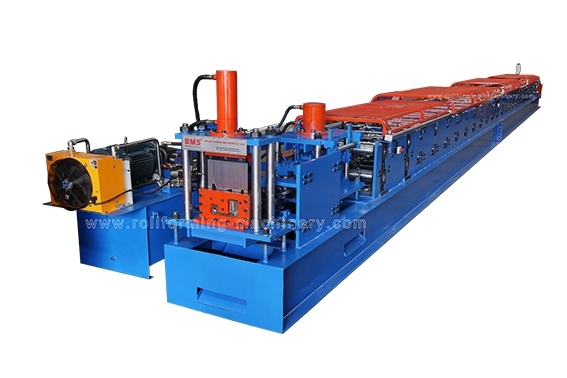

                                        Top Beam Roll Forming Machine For Container Room

Material Detail

Applicable Material: Galvanized Sheet      Meterial Thickness: 2.5-3.0mm

Inspection Thickness: 3.0mm                    Material Strength:sgh340

The Length of Tolerance: ±1mm (12M)

The Material of Machine Testing: BMS Group will provide the feed size to demander for purching in two weeks before machine testing.

Work Flow

Hydraulic Uncoiler (Self-Provided ) → Feeding Guide Device →Lubricant Device  → Leveling Device  → Roll Forming（Cold Water Device）→ Hydraulic Post Punching Device

→ Hydraulic Post Cutting Device → Exit Rack*2

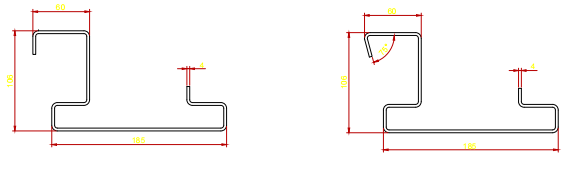

Profile

Machine Components

1、Feeding Guide Device

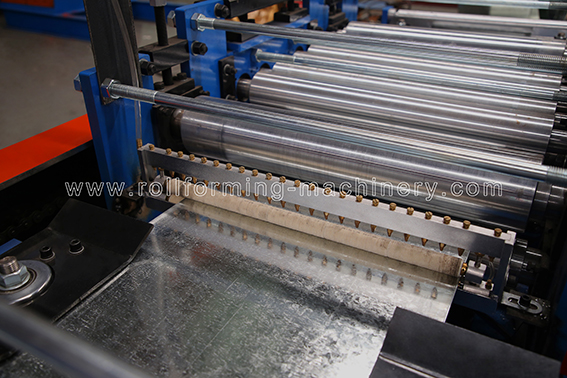

2、Leveling Device

The Method of Feeding Adjustment: Manual

The Thickness Of Wallboard: Q235 t25mm

The Structure Of Wallboard: Integral Wall Panel

Guide Roller: 45# Steel Material, Shaft Diameter φ118

Leveling Roller: 40 Cr Steel, Shaft Diameter φ95

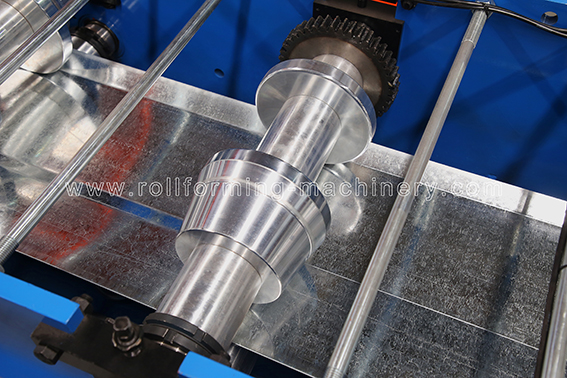

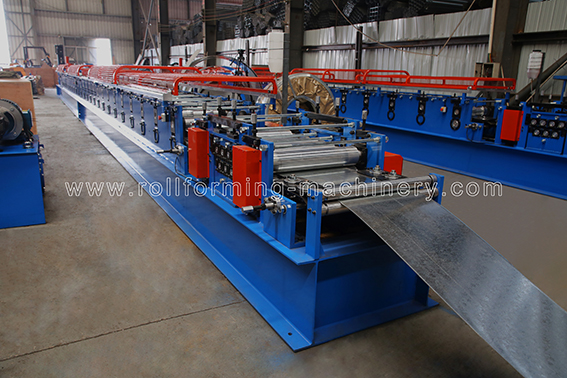

3、Roll Forming Mile

Body frame made from H450 type steel by welding

Side wall thickness: Q235 t25mm;

Shafts manufactured from 45# steel, Shaft Diameter: φ 80/95

Spacer made from 20# Seamless Pipe, Plating Treatment

Rollers manufactured from Bearing steel Gcr15, heat treatment HRC58-62 Degree

Every Machine with Cold Water Device. Gear & Chain drive about 26-step to form.

Forming Speed: 15m/ min; Produced Speed: 10m/ min (Including punching and cutting time)

Main Motor: Double Servo Motors (22KW+22KW); Brand: Huichuan

Speed Reduce Motor: K Series

Chain: Polaroid

All the screw bolts with grade 8.8 (Cheap factories use low grade 4.8) to ensure fix the

machine structure tightly and long life during the machine long time running.

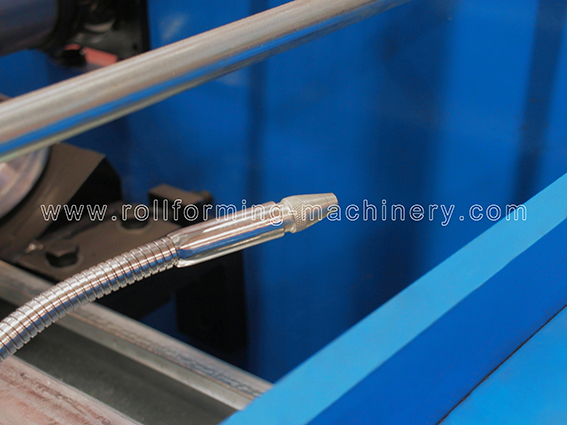

Cold Water Device

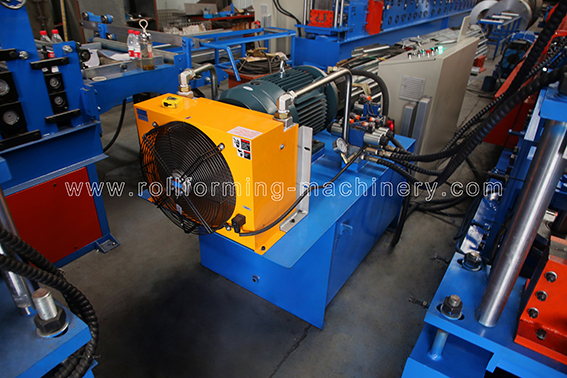

4、Hydraulic Station

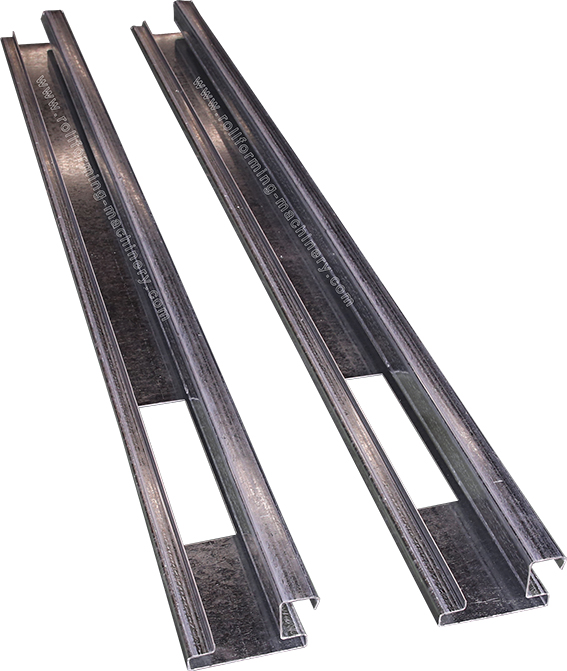

5、Product Show

After Sale Servicve

1、The warranty is 24 months after the client receives the machine. Within the 24 months, we will courier the

replacement parts to the client free of charge.

2、We offer technical support for the entire life of our machines.

3、We can sent our technicians to install and train the workers in the clients' factories with extra cost.

Packing Method

Main body of machine is naked and covered by plastic film ( to protect of dust and corrosion), loaded into container

and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
